Transmissions - Cadillac - 4L30E

  • FTC Part #:

    77-E

    77-E Torque Convertor
    Price:Call
    Application:
    Make/Model:1991-1992 CADILLAC FLEETWOOD 5.7L
    1991-1992 CADILLAC FLEETWOOD BROUGHAM 5.7L
    1993-1995 CADILLAC SUV 4X4 K1,2 4.3L
    1985-1995 CHEVROLET ASTRO/SAFARI 4.3L
    1996-1997 CHEVROLET C1500 4.3L
    1989-1992 CHEVROLET CAMARO 5.0L, 5.7L
    1991-1993 CHEVROLET CAPRICE 5.7L
    1997 CHEVROLET EXPRESS 1500 4.3L
    1996-1997 CHEVROLET EXPRESS 2500 4.3L
    1995-1996 CHEVROLET G10 VAN 4.3L
    1995 CHEVROLET G20 VAN 4.3L
    1995 CHEVROLET G30 VAN 4.3L
    1996-1997 CHEVROLET K1500 PICKUP 4.3L
    1990-1995 CHEVROLET K2500 4.3L
    1991-1997 CHEVROLET PICK UP 1500 4X2, 4X4 4.3L
    1993-1995 CHEVROLET PICK UP 2500, 3500 4X2, 4X4 DURAMAX 4.3L
    1988-1994 CHEVROLET S10 BLAZER 4.3L
    1990-1994 CHEVROLET S-10 BLAZER 4X2, 4X4 4.3L
    1995-1998 CHEVROLET S-10 PICK UP 4X2, 4X4 4.3L
    1988-1994 CHEVROLET S10 PICKUP 4.3L
    1993-1995 CHEVROLET SUV 1500 4X4 4.3L
    1993-1995 CHEVROLET SUV 2500 4X4 4.3L
    1989-1997 CHEVROLET VAN 4.3L
    1987-1997 GMC C1500 4.3L
    1988-1995 GMC C2500 4.3L
    1985-1987 GMC CABALLERO 4.3L
    1987-1995 GMC G2500 4.3L
    1985-1995 GMC G3500 4.3L
    1985-1997 GMC K1500 4.3L
    1991-1997 GMC PICK UP 1500 4X2, 4X4 4.3L
    1993-1995 GMC PICK UP 2500 4X2, 4X4 4.3L
    1993-1995 GMC PICK UP 3500 4X2, 4X4 4.3L
    1987 GMC R1500 4.3L
    1987 GMC R2500 4.3L
    1990-1994 GMC S15 4.3L
    1995 GMC SAFARI 4.3L
    1991 GMC SAFARI VAN 4.3L
    1985-1995 GMC SAFARI VAN 4X2, 4X4 4.3L
    1996-1997 GMC SAVANA 1500 4.3L
    1996-1997 GMC SAVANA 2500 4.3L
    1991-1995 GMC SONOMA 4.3L
    1993-1995 GMC SUV 1500 4X4 4.3L
    1993-1995 GMC SUV 2500 4X4 4.3L
    1992-1993 GMC TYPHOON 4.3L
    1987 GMC V1500 4.3L
    1989-1997 GMC VAN 4.3L
    1991-1992 OLDSMOBILE BRAVADA 4.3L
    1990-1995 OLDSMOBILE BRAVADA 4X2, 4X4 4.3L
    1989-1991 PONTIAC FIREBIRD 5.0L
    1992 PONTIAC TRANS AM 5.0L
    Transmission:8691913-DE8F, 8691904, 8691907, 8691910, 8691913, 24201202, 24202309, 24202311, 24204667, 24208644, 8691904 DE5F, 8691910 DEAF, 8691913 DE8F
    Diameter:12
    Spline:30
    Pilot:1.703
    Hub:1.750
    SLOTS
    Mounting:ROUND MOUNTING LUGS OR SQUARE PADS
    10 3/4 BOLT CIRCLE
    3 PADS
    Clutch:YES
    ID Code:8691913-DE8F, 8691904, 8691907, 8691910, 8691913, 24201202, 24202309, 24202311, 24204667, 24208644, 8691904 DE5F, 8691910 DEAF, 8691913 DE8F
    Stall:1654 STALL
    Notes:

  • FTC Part #:

    77-G

    77-G Torque Convertor
    Price:Call
    Application:
    Make/Model:1992-1993 BUICK ESTATE WAGON 5.7L
    1991-1993 BUICK LESABRE WAGON 5.7L
    1991-1993 BUICK ROADMASTER 5.0L, 5.7L
    1990-1993 CADILLAC FLEETWOOD 5.0L, 5.7L
    1990-1995 CADILLAC SUV 4X4 K1, K2 5.0L, 5.7L
    1987-1994 CHEVROLET BLAZER 5.0L, 5.7L
    1984-1986 CHEVROLET C10 PICKUP 5.0L, 5.7L, 6.2L
    1984-1986 CHEVROLET C10 SUBURBAN 5.0L, 5.7L, 6.2L
    1988-1995 CHEVROLET C1500 5.0L, 5.7L, 6.2L, 6.5L
    1992-1995 CHEVROLET C1500 SUBURBAN 5.7L
    1984-1986 CHEVROLET C20 PICKUP 5.0L, 5.7L, 6.2L
    1984-1986 CHEVROLET C20 SUBURBAN 5.0L, 5.7L
    1995 CHEVROLET C2500 5.7L
    1988-1995 CHEVROLET C2500 PICKUP 5.0L, 5.7L, 6.2L, 6.5L
    1993-1995 CHEVROLET C2500 SUBURBAN 5.7L
    1984-1985 CHEVROLET C30 PICKUP 5.0L, 5.7L, 6.2L
    1988-1989 CHEVROLET C3500 PICKUP 5.7L, 6.2L
    1984-1995 CHEVROLET CAMARO 5.0L, 5.7L
    1984-1993 CHEVROLET CAPRICE 4.3L, 5.0L, 5.7L
    1984-1995 CHEVROLET CORVETTE 5.7L
    1984 CHEVROLET EL CAMINO 5.0L
    1992-1993 CHEVROLET ESTATE WAGON 5.7L
    1984-1995 CHEVROLET G10 VAN 5.0L, 5.7L
    1984-1995 CHEVROLET G20 VAN 4.1L, 5.0L, 5.7L, 6.5L
    1984-1994 CHEVROLET G30 VAN 5.0L, 5.7L, 6.2L
    1984-1985 CHEVROLET IMPALA 5.0L, 5.7L
    1982-1986 CHEVROLET K10 PICKUP 5.0L, 5.7L, 6.2L
    1982-1986 CHEVROLET K10 SUBURBAN 5.7L, 6.2L
    1988-1995 CHEVROLET K1500 PICKUP 5.0L, 5.7L, 6.2L, 6.5L
    1992-1995 CHEVROLET K1500 SUBURBAN 5.7L
    1982-1986 CHEVROLET K20 PICKUP 5.7L, 6.2L
    1982-1986 CHEVROLET K20 SUBURBAN 5.7L, 6.2L
    1988-1995 CHEVROLET K2500 5.0L, 5.7L, 6.2L, 6.5L
    1982-1984 CHEVROLET K30 6.2L
    1989-1992 CHEVROLET K3500 5.7L, 6.2L
    1982-1986 CHEVROLET K5 BLAZER 5.0L, 5.7L, 6.2L
    1984 CHEVROLET MONTE CARLO 5.0L
    1989-1995 CHEVROLET PICK UP 1500 4X2 5.0L
    1989-1995 CHEVROLET PICK UP 1500 4X2 4X4 5.0L, 5.7L, 6.2L, 6.5L
    1990-1995 CHEVROLET PICK UP 2500 4X2, 4X4 5.0L, 5.7L, 6.2L, DURAMAX 6.5L
    1990-1995 CHEVROLET PICK UP 3500 4X2, 4X4 5.0L, 5.7L,6.2L, DURAMAX 6.5L
    1987 CHEVROLET R10 5.7L, 6.2L
    1987-1988 CHEVROLET R10 SUBURBAN 5.0L, 5.7L, 6.2L
    1989-1991 CHEVROLET R1500 SUBURBAN 5.7L, 6.2L
    1987-1988 CHEVROLET R20 5.0L, 5.7L, 6.2L
    1987-1988 CHEVROLET R20 SUBURBAN 5.7L, 6.2L
    1989 CHEVROLET R2500 6.2L
    1989-1991 CHEVROLET R2500 SUBURBAN 5.7L, 6.2L
    1987-1988 CHEVROLET R30 5.7L, 6.2L
    1989-1991 CHEVROLET R3500 5.7L, 6.2L
    1990-1995 CHEVROLET SUV 1500, 2500 4X2, 4X4 5.0L, 5.7L
    1995 CHEVROLET TAHOE 5.7L
    1987 CHEVROLET V10 5.0L, 5.7L, 6.2L
    1987-1988 CHEVROLET V10 SUBURBAN 5.7L, 6.2L
    1989-1991 CHEVROLET V1500 SUBURBAN 5.7L, 6.2L
    1987 CHEVROLET V20 6.2L
    1987-1988 CHEVROLET V20 SUBURBAN 5.7L, 6.2L
    1989-1991 CHEVROLET V2500 SUBURBAN 5.7L, 6.2L
    1987-1988 CHEVROLET V30 5.7L, 6.2L
    1989 CHEVROLET V3500 6.2L
    1987-1995 CHEVROLET VAN 5.0L, 5.7L, 6.2L, 6.5L
    1984-1992 GMC C1500 5.0L, 5.7L, 6.2L
    1986-1995 GMC C1500 4.3L, 5.0L, 5.7L, 6.2L, 6.5L
    1984-1995 GMC C1500 SUBURBAN 5.0L, 5.7L, 6.2L
    1984-1996 GMC C2500 SUBURBAN 5.0L, 5.7L, 6.2L, 6.5L
    1987 GMC CABALLERO 5.0L
    1987 GMC G1500 5.0L
    1987 GMC G2500 5.0L, 6.2L
    1987 GMC G3500 5.7L, 6.2L
    1987 GMC JIMMY 5.0L, 5.7L, 6.2L
    1991-1992 GMC K1500 4.3L
    1993 GMC K2500 5.7L
    1989-1995 GMC PICK UP 1500 4X2 5.0L
    1989-1995 GMC PICK UP 1500 4X2, 4X4 5.7L, 6.2L, 6.5L
    1990-1995 GMC PICK UP 2500 4X2, 4X4 5.0L, 5.7L
    1995 GMC PICK UP 2500, 3500 4X2, 4X4 5.7L
    1987 GMC R1500 5.0L, 5.7L, 6.2L
    1987 GMC R1500 SUBURBAN 5.0L, 5.7L, 6.2L
    1987 GMC R2500 5.0L, 5.7L, 6.2L
    1987 GMC R2500 SUBURBAN 5.7L, 6.2L
    1990-1995 GMC SUV 1500, 2500 4X4 5.0L, 5.7L
    1987 GMC V1500 5.0L, 5.7L, 6.2L
    1987 GMC V1500 SUBURBAN 5.7L, 6.2L
    1987 GMC V2500 4.8L, 5.7L, 6.2L
    1987 GMC V2500 SUBURBAN 5.7L, 6.2L
    1987-1995 GMC VAN 5.0L, 5.7L, 6.2L, 6.5L
    1991-1992 OLDSMOBILE CUSTOM CRUISER 5.0L, 5.7L
    1988-1991 PONTIAC FIREBIRD 5.0L
    1992 PONTIAC TRANS AM 5.0L
    Transmission:4L60 (M30), 4L60 (MD8), 4L60E, 700-R4, 700R4, 700R4 (MD8)
    Diameter:12
    Spline:30
    Pilot:1.703
    Hub:1.750
    SLOTS
    Mounting:ROUND MOUNTING LUGS OR SQUARE PADS
    10 3/4 BOLT CIRCLE
    3 PADS
    Clutch:YES
    ID Code:8691912 DGAG, 8691906, 8691911, 8691912, 24202308, 8691906 DGAF, 8691906-DGAF, 8691911 DG5F, 8691911, 8691912, 8691912 DGAF, 8691912 DGAG
    Stall:1397 STALL
    Notes:

  • FTC Part #:

    77-HH

    77-HH Torque Convertor
    Price:Call
    Application:
    Make/Model:1996 BUICK ESTATE WAGON 5.7L
    1994-1996 BUICK LESABRE WAGON 5.7L
    1994-1996 BUICK ROADMASTER 5.7L
    1994-1996 CADILLAC FLEETWOOD BROUGHAM 5.7L
    1996-1997 CHEVROLET C1500 5.0L, 5.7L
    1996-1997 CHEVROLET SUBURBAN 5.7L
    1996-1997 CHEVROLET C2500 5.7L
    1996-1997 CHEVROLET C2500 PICKUP 5.0L, 5.7L
    1996-1997 CHEVROLET C2500 SUBURBAN 5.7L
    1993-1997 CHEVROLET CAMARO 5.7L
    1994-1996 CHEVROLET CAPRICE 4.3L, 5.7L
    1990-2001 CHEVROLET CORVETTE 5.7L
    1994-1996 CHEVROLET ESTATE WAGON 5.7L
    1997 CHEVROLET EXPRESS 1500 5.0L, 5.7L
    1997 CHEVROLET EXPRESS 2500 5.0L, 5.7L
    1995-1996 CHEVROLET G10 VAN 5.0L, 5.7L
    1995-1996 CHEVROLET G20 VAN 5.0L, 5.7L
    1995 CHEVROLET G30 VAN 5.7L
    1994-1996 CHEVROLET IMPALA 4.3L, 5.7L
    1996-1997 CHEVROLET K1500 PICKUP 5.0L, 5.7L
    1996-1997 CHEVROLET K1500 SUBURBAN 5.7L
    1996-1997 CHEVROLET K2500 5.0L, 5.7L
    1995-1997 CHEVROLET PICK UP 1500 4X2, 4X4 5.0L, 5.7L, 6.5L
    1996-1997 CHEVROLET TAHOE 5.7L
    1995-1997 CHEVROLET VAN 5.0L, 5.7L, 6.5L
    1996-1999 GMC C1500 5.0L, 5.7L
    1996-1997 GMC C1500 SUBURBAN 5.7L
    1996-1998 GMC C2500 5.0L, 5.7L
    1996-1997 GMC C2500 SUBURBAN 5.7L
    1997 GMC K2500 5.7L
    1995-1997 GMC PICK UP 1500 4X2, 4X4 5.0L, 5.7L, 6.5L
    1995 GMC VAN 5.0L, 5.7L, 6.5L
    1996-1997 GMC VAN 5.0L, 5.7L
    1993-1997 PONTIAC FIREBIRD 5.7L
    Transmission:4L60 (M30), 4L60 (MD8), 4L60E, 700R4, 700R4-4L60
    Diameter:12
    Spline:30
    Pilot:1.703
    Hub:1.750
    SLOTS
    Mounting:3 PADS
    Clutch:YES
    ID Code:24202174, 24202175, 24202308, 24204668, 24204669, 24202175 DGHF, 24204668, 24208646, 24204669 DHHF, 24204669, 24208648
    Stall:1397 STALL
    Notes:UNIT BUILT WITH FURNACE BRAISED PUMP

  • FTC Part #:

    77-HP

    77-HP Torque Convertor
    Price:Call
    Application:
    Make/Model:1999-2000 CADILLAC ESCALADE 5.7L
    1999-2000 CADILLAC SUV 4X4 K1 5.0L, 5.7L
    1998-1999 CHEVROLET C1500 5.0L, 5.7L
    1998-1999 CHEVROLET C1500 SUBURBAN 5.7L
    1998 CHEVROLET C2500 5.7L
    1998-1999 CHEVROLET C2500 PICKUP 5.0L, 5.7L
    1996-2004 CHEVROLET CORVETTE 5.7L
    1998-2002 CHEVROLET EXPRESS 1500 5.0L, 5.7L
    1998-2002 CHEVROLET EXPRESS 2500 5.0L, 5.7L
    1998-2001 CHEVROLET EXPRESS 3500 5.0L, 5.7L
    1998-1999 CHEVROLET K1500 PICKUP 5.0L, 5.7L
    1998-1999 CHEVROLET K1500 SUBURBAN 5.7L
    1998 CHEVROLET K2500 5.0L
    1998-2000 CHEVROLET PICK UP 1500, 2500 4X2 5.0L, 5.7L
    1998-2000 CHEVROLET PICK UP 1500, 2500 4X4 5.0L, 5.7L
    1999-2000 CHEVROLET SUV 4X4 5.0L, 5.7L
    1998-2000 CHEVROLET TAHOE 5.7L
    1998-2002 CHEVROLET VAN 5.0L, 5.7L
    1998-1999 GMC C1500 5.0L
    1998-1999 GMC C1500 SUBURBAN 5.7L
    1998-1998 GMC C2500 5.0L, 5.7L
    1998-2000 GMC PICK UP 1500 4X2, 4X4 5.0L, 5.7L
    2002 GMC SAVANA 1500 5.7L
    1999-2000 GMC SUV 1500 4X4 5.0L
    1998-2002 GMC VAN 5.0L, 5.7L
    Transmission:4L60E, 4L60 (M30)
    Diameter:12
    Spline:30
    Pilot:1.703
    Hub:1.750
    SLOTS
    Mounting:3 PADS
    Clutch:YES - WOVEN
    ID Code:DHPF, 24208649, 24210921, 24213394, 24210921 DHPF
    Stall:1397 STALL
    Notes:UNIT BUILT WITH FURNACE BRAISED PUMP

  • FTC Part #:

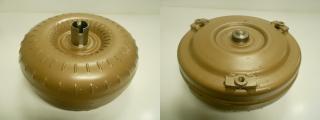

    77-LP

    77-LP Torque Convertor
    Price:Call
    Application:
    Make/Model:1998-2000 CADILLAC SUV 4X4 K1 5.7L
    1998 CHEVROLET C1500 4.3L
    1998-2002 CHEVROLET EXPRESS 1500 4.3L
    1998-2001 CHEVROLET EXPRESS 2500 4.3L
    1998-2001 CHEVROLET EXPRESS 3500 4.3L
    1998 CHEVROLET K1500 PICKUP 4.3L
    1998-2000 CHEVROLET PICK UP 1500, 2500 4X2, 4X4 4.3L, 5.7L
    1998-2000 CHEVROLET SUV 4X4 5.7L
    1998-2002 CHEVROLET VAN 4.3L
    1998 GMC C1500 4.3L
    1998 GMC K1500 4.3L
    1998 GMC PICK UP 1500 4X2, 4X4 4.3L
    1998-2000 GMC PICK UP 1500 4X2, 4X4 5.7L
    1998-2002 GMC SAVANA 1500 4.3L
    1998-2002 GMC SAVANA 2500 4.3L
    1998 GMC SUV 1500 4X4 5.7L
    1999-2000 GMC SUV 1500 4X4 5.7L
    1998-2002 GMC VAN 4.3L
    Transmission:4L60 (M30), 4L60E
    Diameter:12 1/2
    Spline:30
    Pilot:1.703
    Hub:1.750
    SLOTS
    Mounting:3 PADS
    Clutch:YES
    WOVEN
    ID Code:24210923, 24210920, 24210920 DLNF, TLCX, TLBX, 2420636, 24213391
    Stall:1654 STALL
    Notes:6 1/2" OVERALL HEIGHT
    11 1/2" BOLT CIRCLE

  •
    FTC Part #:

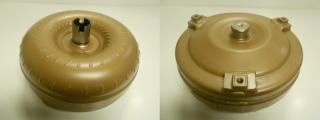

    77-TL

    77-TL Torque Convertor
    Price:Call
    Application:
    Make/Model:1999 - 2002 CADILLAC SUV 4X4 K1 4.3L
    2001 - 2004 CHEVROLET ASTRO/SAFARI 4.3L
    2003 - 2006 CHEVROLET EXPRESS 1500 4.3L
    2004 - 2004 CHEVROLET EXPRESS 2500 4.3L
    1999 - 2005 CHEVROLET PICK UP 1500, 2500, 3500 4X2, 4X4 4.3L, 4.8L
    1999 - 2006 CHEVROLET SILVERADO 1500 4.3L, 4.8L
    2000 - 2013 CHEVROLET SILVERADO 1500 HD 4.3L
    2012 - 2013 CHEVROLET SILVERADO SIERRA 2500-3500 HD 6.0L
    1999 - 2005 CHEVROLET SUV 4X4 4.3L
    2000 - 2006 CHEVROLET TAHOE 4.8L
    1999 - 2005 GMC PICK UP 1500, 2500, 3500 4X2, 4X4 4.3L, 4.8L
    2003 - 2006 GMC SAVANA 1500 4.3L
    2003 - 2005 GMC SAVANA 2500 4.3L
    1999 - 2006 GMC SIERRA 1500 4.3L, 4.8L
    1999 - 2002 GMC SUV 1500 4X4 4.3L
    2002 - 2002 GMC YUKON 4.8L
    Transmission:4L60 (M30), 4L60E
    Diameter:12 1/2
    Spline:30
    Pilot:1.703
    Hub:1.750 SLOTS
    Mounting:6 1/2 OVERALL HEIGHT 11 BOLT CIRCLE 3 PADS
    Clutch:YES WOVEN
    ID Code:24213391, 24213392
    Notes:

Questions? Not sure what converter you need?
Please call Factory Toll Free 1-(800)-790-0039
