Best Darn Torque Converters in the World!

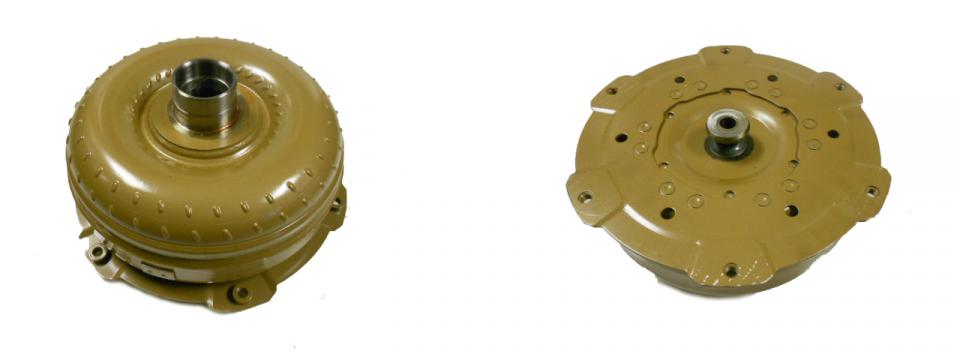

| FTC Part #: | 77-4543 |
| Price: | $502.00 |
| Core Charge?: | Does NOT Include fully refundable core charge of $150.00 |
| Make/Model: | 2016 - 2017 CHEVROLET CAMARO SS 6.2L 2018 - 2020 CHEVROLET EXPRESS 2500 4.3L 2018 - 2019 CHEVROLET EXPRESS 3500 4.3L 2016 - 2018 CHEVROLET SILVERADO 1500 5.3L, 6.2L 2014 - 2018 CHEVROLET SILVERADO 6.2L 2016 - 2017 CHEVROLET TAHOE 6.2L 2018 - 2018 GMC SAVANA 1500 4.3L 2018 - 2019 GMC SAVANA 2500 4.3L 2016 - 2018 GMC SIERRA 1500 5.3L 2016 - 2020 GMC SIERRA 6.2L 2008 - 2018 GMC YUKON 6.2L |
| Transmission: | 8L90 |
| Diameter: | 11" DIAMETER, 3.470" OVERALL HEIGHT |
| Spline: | 54 SPLINE, 27 BLADES, 36 INTERNAL SPLINE |
| Pilot: | 1.700" DIAMETER, 1.105" LONG |
| Hub: | MILLED FLATS, 2.305" OD, 1.435" LONG |
| Mounting: | PLATE RIVETER TO FRONT COVER WITH 6 PADS, 10MM x 1.5 THREADS, 11-1/2" BOLT CIRCLE |
| Clutch: | CAPTIVE CLUTCH, RIVETS VISIBLE FROM FRONT COVER |
| ID Code: | METAL STAMP: 24279497, 24285996, 24290214, 24264543, 24280633, 24274485, 24285996, 24285997, 24286975, 24281895, 24284689, 24284689, 24297076, 24284690 |
| Stall: | LOW |
| Notes: | FIN ANGLE SUPER LOW |
| Weight: | 40 |
Florida Torque Converter, 906 SE 9th Street, Cape Coral, FL 33990 USA
