Transmissions - Toyota - U660E, U660F

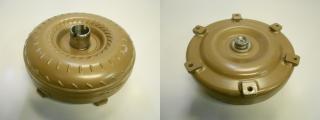

FTC Part #:	89-13

Price:	$218.00
Core Charge:	Does NOT Include refundable core charge of $80.00
Make/Model:	2011 - 2016 SCION tC 2.5L 2010 - 2016 TOYOTA CAMRY 2.5L 2009 - 2016 TOYOTA HIGHLANDER 2.7L 2013 - 2016 TOYOTA RAV4 2.5L 2010 - 2017 TOYOTA SIENNA 2.7L 2010 - 2015 TOYOTA VENZA 2.5L
Transmission:	U660E, U760E
Diameter:	9-7/8”
Spline:	22
Pilot:	1.258” DIAMETER 0.705" LENGTH
Hub:	1.390” Height 1.695" Diameter SLOTTED
Mounting:	6 SQUARE PADS WITH THREADED HOLES 9MM X 1.25 THREADS RADIUS 9-1/4"
Clutch:	LOCK UP
ID Code:	METAL STAMP P ON FRONT COVER INK CODE: U760E P, U760E, 33140, 33141
Stall:	LOW STALL
Notes:	OVERALL HEIGHT: 3.695"
Weight:	26

FTC Part #:	89-87

Price:	$339.00
Core Charge:	Does NOT Include refundable core charge of $150.00
Make/Model:	2007 - 2015 LEXUS ES350 3.5L 2008 - 2015 TOYOTA AVALON 3.5L 2007 - 2015 TOYOTA CAMRY 3.5L 2014 - 2016 TOYOTA HIGHLANDER 3.5L 2010 - 2014 TOYOTA SIENNA 3.5L 2009 - 2015 TOYOTA VENZA 3.5L
Transmission:	U660E, U660F
Diameter:	11-1/4”
Spline:	22
Pilot:	1.257” 1.231” LONG
Hub:	1.695” SLOTS
Mounting:	6 PADS 9MM X 1.25 THREADS 9-5/8” BOLT CIRCLE
Clutch:	YES
ID Code:	ID CODE: 423K, A1210090269, U66OE, 2 SMALL GREEN CIRCLE METAL STAMP: P ON BOTH SIDES
Weight:	29

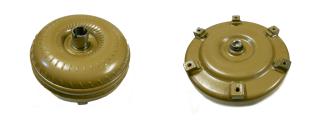

FTC Part #:	89-102

Price:	$272.00
Core Charge:	Does NOT Include refundable core charge of $80.00
Make/Model:	2008 - 2011 TOYOTA LAND CRUISER 5.7L 2013 - 2015 TOYOTA LAND CRUISER 5.7L 2007 - 2016 TOYOTA TUNDRA 5.7L
Transmission:	U660E, U660F, U760E, A750E, A760E, AB60E, AB60F
Diameter:	12”
Spline:	43 SPLINE, BLADES LOW, INTERNAL SPLINE 24, 43 STATOR
Pilot:	1.257” DIAMETER, 0.610" LONG
Hub:	1.770" OD, SLOTTED, FLANGED, 1.748" LONG
Mounting:	6 SQUARE PADS 0.705" TALL EXTENDED 10MM X 1.25 THREADS 10.5" BOLT CIRCLE
Clutch:
ID Code:	53A100, B, L, LB INK CODE: 4216H6217NINER152653100A
Stall:	LOW STALL
Weight:	39
