Transmissions - Cadillac - 6L45
Questions? Not sure what converter you need?
Please call Factory Toll Free 1-(800)-790-0039
| FTC Part #: | 77-7188 |
 | |
| Price: | $398.00 |
| Core Charge: | Does NOT Include refundable core charge of $150.00 |
| Make/Model: | 2008 - 2014 CADILLAC ATS 3.6L 2012 - 2015 CADILLAC ATS 2.0L 2010 - 2012 CADILLAC CTS 3.0L 2008 - 2014 CADILLAC CTS 3.6L 2012 - 2015 CHEVROLET CAMARO 3.6L 2011 - 2017 CHEVROLET CAPRICE PPV 3.6L |
| Transmission: | 6L45, 6L50 |
| Diameter: | 10-1/8" DIAMETER, 6.057" OVERALL HEIGHT |
| Spline: | 27 SPLINE, 36 BLADES, 27 INTERNAL SPLINE |
| Pilot: | 0.826" DIAMETER, 1.340" LONG |
| Hub: | SLOTTED 1.835" OD, 2.210" LONG |
| Mounting: | STAR-SHAPED MOUNTING PLATE WITH 6 PADS THREADED HOLES M10 X 1.5 THREADS ON 9-3/4" BOLT CIRCLE |
| Clutch: | CAPTIVE WOVEN |
| ID Code: | METAL & INK CODES: 24265773, 31312, 1633, L2 COVER STICKER: 2425 7188, 2426 4764, 2426 5772, 2426 5773, 2427 9759 TRANS CODE: AZA 19331052, 24240017, 24242552, 24249520, 24252928, 24262816, 24265772, 24269972, 24270603, 24279757, 24279758, 24280382, 24280384,24264764 |
| Notes: | FIN ANGLE VERY LOW |
| Weight: | 30 |

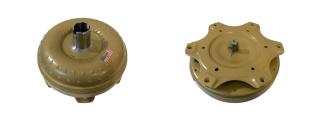

| FTC Part #: | 82-52LS |
 | |
| Price: | $398.40 |
| Core Charge: | Does NOT Include refundable core charge of $150.00 |
| Make/Model: | 2009 - 2014 CADILLAC CTS 3.0L |
| Transmission: | 6L45 |
| Diameter: | 10” DIAMETER, 6.045" OAH |
| Spline: | 27 |
| Pilot: | 0.826” |
| Hub: | SLOTS |
| Mounting: | MOUNTING PLATE WITH 6 THREADED HOLES 10MM X 1.50 THREADS 10-3/4” BOLT CIRCLE |
| Clutch: | YES |
| ID Code: | 24249520, 24269972, 24270603, 6690426660 24240017, 24242552, 24249520, 24252928, 24269972, 24270603, 24279758 |
| Weight: | 34 |
