Transmissions - Chevrolet - 6L80, 6L90

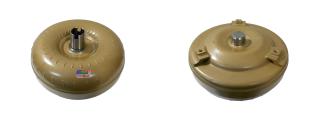

FTC Part #:	77-JMDY

Price:	$398.00
Core Charge:	Does NOT Include refundable core charge of $150.00
Make/Model:	2008 - 2014 CADILLAC CTS 6.2L TURBO 2012 - 2015 CHEVROLET CAMARO LZ1 6.2L
Transmission:	6L90
Diameter:	12-1/2" DIAMETER, 6.185" OAH
Spline:	36
Pilot:	1.704" TAPERED & SOLID
Hub:	1.834" FLANGED & SLOTTED
Mounting:	6 PADS M10 X 1.5 THREADS
Clutch:	WOVEN
ID Code:	JMDY 2424 2552 Trans Codes: 2DJA, 2DVA 17804387, 24240017, 24242552, 24245962, 24246386, 24249520, 24252928, 24269972, 24270603, 24272305, 24279758, 24280382, 24280384, 24285996, 24285997, 24286575
Notes:	RIVETS VISIBLE ON FRONT COVER
Weight:	45

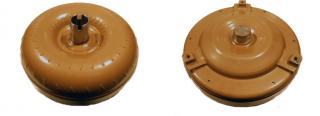

FTC Part #:	77-JMDZ

Price:	$439.00
Core Charge:	Does NOT Include refundable core charge of $200.00
Make/Model:	2015-2016 CADILLAC ESCALADE 6.2L 2014-2016 CHEVROLET SILVERADO 1500 6.2L 2020-2020 CHEVROLET SILVERADO 1500 6.2L 2014-2016 CHEVROLET SILVERADO 1500 6.6L 2020-2020 CHEVROLET SILVERADO 1500 6.6L 2014-2016 GMC SIERRA 1500 6.2L 2020-2020 GMC SIERRA 1500 6.2L 2014-2016 GMC SIERRA 1500 6.6L 2020-2020 GMC SIERRA 1500 6.6L 2015-2015 GMC YUKON 6.2L
Transmission:	6L90
Diameter:	12.5"
Spline:	36 SPLINE STATOR
Pilot:	1.703"
Hub:	1.834" FLAGED & SLOTTED MOUNTING 3 SLIGHTLY EXTENDED MOUNTING PADS 11.5" BOLT CIRCLE
Mounting:	3 PADS 11" BOLT CIRCLE 0.810" PAD HEIGHTS
Clutch:	YES PAPER
ID Code:	JMDZ, 24272305, 24247370, 24284077
Notes:	IF 6 PAD USE 77-JMDZ-6
Weight:	45

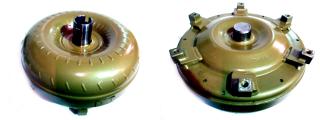

FTC Part #:	77-JMDZ-6

Price:	$438.00
Core Charge:	Does NOT Include refundable core charge of $100.00
Make/Model:	2009 - 2010 CHEVROLET SILVERADO 4500 6.6L HD DIESEL
Transmission:	6L90
Diameter:	12.5"
Spline:	36 SPLINE STATOR
Pilot:	1.703"
Hub:	1.834" FLAGED & SLOTTED
Mounting:	6 SLIGHTLY EXTENDED MOUNTING PADS 11.5" BOLT CIRCLE 1.080" PAD HEIGHT 10 x 1.50 THREADS
Clutch:	YES WOVEN
ID Code:	JMDZ, JMDZ6
Notes:	IF 3 PAD USE 77-JMDZ CAPTIVE CLUTCH RIVETS ARE VISIBLE ON COVER
Weight:	45
