Transmissions - Hyundai - A6MF1

FTC Part #:	42-KGD

Price:	$298.00
Core Charge:	Does NOT Include refundable core charge of $100.00
Make/Model:	2015 - 2015 BUICK ELECTRA 1.8L 2012 - 2016 HYUNDAI ELANTRA 1.8L 2009 - 2023 HYUNDAI SONATA 2.0L 2010 - 2018 HYUNDAI SONATA 2.4L 2010 - 2013 KIA OPTIMA 2.4L 2012 - 2015 KIA SOUL 2.0L 2006 - 2012 MITSUBISHI ECLIPSE 3.8L
Transmission:	A6LF1, A6MF1, F5A51, A6GF1, AGMF1, JF506E
Diameter:	10-3/16” DIAMETER, OVERALL HEIGHT: 4.075"
Spline:	20
Pilot:	1.062” DIAMETER, 0.660" LENGTH
Hub:	1.345" HEIGHT, 1.692" DIAMETER, SLOTTED
Mounting:	4 OVAL PADS WITH 10MM X 1.25 THREADS, 0.435 Thick RING GEAR, RADIUS 8-3/4"
Clutch:	YES
ID Code:	INK CODE: KGD, KGF, KHE, KVC, NA, NC ON BOTH SIDES
Stall:	LOW STALL
Notes:	110 TOOTH RING GEAR
Weight:	28

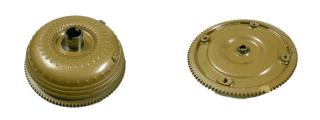

FTC Part #:	42-SB

Price:	$218.00
Core Charge:	Does NOT Include refundable core charge of $100.00
Make/Model:	2012-2016 HYUNDAI ELANTRA 1.8L
Transmission:	A6MF1
Diameter:	10-1/8" DIAMETER, 3.985" OVERALL HEIGHT
Spline:	20 INTERNAL SPLINE, 38 SPLINE STATOR
Pilot:	1.060" DIAMTER, HOLLOW, 0.400'" LONG
Hub:	1.690" DIAMETER, 1.350" HEIGHT, SLOTS, FLANGED
Mounting:	4 OVAL PADS WITH 10 X 1.25 THREADS ON 8-3/4” BOLT CIRCLE
Clutch:	YES
ID Code:	INK STAMP BY PILOT AND PUMP SB
Notes:	11-1/16" ACROSS 110 TOOTH RING GEAR
Weight:	33
