Best Darn Torque Converters in the World!

Florida Torque Converter, 906 SE 9th Street, Cape Coral, FL 33990 USA

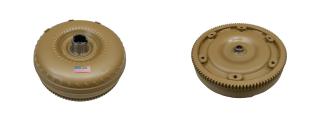

FTC Part #:	42-KCA

Price:	$366.40
Core Charge:	Does NOT Include refundable core charge of $100.00
Make/Model:	Hyundai TBD
Transmission:	TBD
Diameter:	11-1/8" DIAMETER, 3.880" OVERALL HEIGHT
Spline:	23 INTERNAL SPLINE
Pilot:	1.060" DIAMETER, 0.385" LONG
Hub:	1.845" OD, 1.460" LENGTH, SLOTTED / FLANGED
Mounting:	6 OVAL PADS, 10MM X 1.25
Clutch:
ID Code:	KCA
Stall:	LOW
Notes:	109 TOOTH RING GEAR, FIN ANGLE LOW
Weight:	30

FTC Part #:	42-46

Price:	$334.40
Core Charge:	Does NOT Include refundable core charge of $150.00
Make/Model:	2012 - 2016 HYUNDAI EQUUS 5.0L
Transmission:	A8TR1
Diameter:	11.5" DIAMETER, 5.520" OVERALL HEIGHT
Spline:	24
Pilot:	1.337" DIAMETER, 1.040" LENGTH
Hub:	SLOTTED/FLANGED, 1.850" OD, 1.860" LENGTH
Mounting:	6 OVAL PADS 0.530" TALL ON 9-1/2" BOLT CIRCLE
Clutch:	YES CAPTIVE
ID Code:	4E033, TL,TJ, 140316165022, 4E032
Stall:	LOW
Notes:	FIN ANGLE LOW
Weight:	38
