Best Darn Torque Converters in the World!
Transmissions - Toyota - A750E, A750F
Questions? Not sure what converter you need?
Please call Factory Toll Free 1-(800)-790-0039
| FTC Part #: | 89-102 |
 | |
| Price: | $272.00 |
| Core Charge: | Does NOT Include refundable core charge of $80.00 |
| Make/Model: | 2008 - 2011 TOYOTA LAND CRUISER 5.7L 2013 - 2015 TOYOTA LAND CRUISER 5.7L 2007 - 2016 TOYOTA TUNDRA 5.7L |
| Transmission: | U660E, U660F, U760E, A750E, A760E, AB60E, AB60F |
| Diameter: | 12” |
| Spline: | 43 SPLINE, BLADES LOW, INTERNAL SPLINE 24, 43 STATOR |
| Pilot: | 1.257” DIAMETER, 0.610" LONG |
| Hub: | 1.770" OD, SLOTTED, FLANGED, 1.748" LONG |
| Mounting: | 6 SQUARE PADS 0.705" TALL EXTENDED 10MM X 1.25 THREADS 10.5" BOLT CIRCLE |
| Clutch: | |
| ID Code: | 53A100, B, L, LB INK CODE: 4216H6217NINER152653100A |
| Stall: | LOW STALL |
| Weight: | 39 |

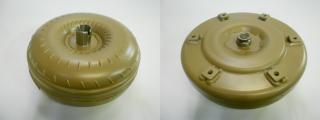

| FTC Part #: | 89-89 |
 | |
| Price: | $339.00 |
| Core Charge: | Does NOT Include refundable core charge of $150.00 |
| Make/Model: | 2003 - 2009 LEXUS GX470 4.7L 2003 - 2006 LEXUS LS430 4.3L 2003 - 2009 TOYOTA 4RUNNER 4.7L 2003 - 2008 TOYOTA LANDCRUISER 4.7L 2005 - 2008 TOYOTA SEQUOIA 4.7L 2005 - 2008 TOYOTA TUNDRA 4.7L |
| Transmission: | A750E/F, A761E |
| Diameter: | 11-7/8” |
| Spline: | 20, 38 SPLINE STATOR |
| Pilot: | 1.257” CUP STYLE PILOT 0.785" LONG |
| Hub: | 1.500" SLOTS FLANGED HUB 1.580" LONG |
| Mounting: | 6 PADS 0.400" TALL ON 9-7/16" BOLT CIRCLE WITH 9 X 1.25 THREADS |
| Clutch: | YES |
| ID Code: | ID CODE: BLUE PAINT, DOT SWATCH BY PILOT, 53A010,53A011, 53A020 METAL STAMP: B78130064 |
| Weight: | 38 |

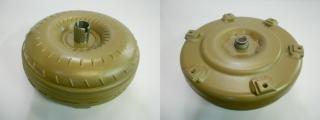

| FTC Part #: | 89-90 |
 | |
| Price: | $339.00 |
| Core Charge: | Does NOT Include refundable core charge of $150.00 |
| Make/Model: | 2007 - 2014 FJ CRUISER 4.0L 2005 - 2007 TOYOTA AVALON 4.0L 2003 - 2021 TOYOTA 4RUNNER 4.0L 2005 - 2015 TOYOTA TACOMA 4.0L 2005 - 2011 TOYOTA TUNDRA 4.0L |
| Transmission: | A750E/F |
| Diameter: | 11-7/8” |
| Spline: | 20 38 SPLINE STATOR |
| Pilot: | HAT/STEPPED OR CUP STYLE 1.257” 0.785" LONG OR 0.825" |
| Hub: | FLANGED AND SLOTTED HUB Hub Diameter 1.500" 1.590" LONG |
| Mounting: | 6 PADS ON 10-5/8" BOLT CIRCLE, 9 x 1.25 THREADS |
| Clutch: | YES |
| ID Code: | PEACH PAINT DOT BY PILOT METAL STAMP: A7K100288 INK CODE: 5A1, 53A040, 50A110, 53A0409 |
| Notes: | CUP / HAT (STEPPED) PILOT 1-1/4" LONG SLIGHTLY REDUCED PRIMARY 6 STEPPED PADS 0.465" THICK on 10-1/2" BOLT CIRCLE 9 x 1.25 THREADS Overall Height :4.780" |
| Weight: | 34 |
| FTC Part #: | 89-90-9 |
 | |
| Price: | $190.00 |
| Core Charge: | Does NOT Include refundable core charge of $100.00 |
| Make/Model: | 2003-2004 TOYOTA 4RUNNER 4.0L |
| Transmission: | A340E, A750E |
| Diameter: | 12” |
| Spline: | 20 SPLINE, 38 STATOR |
| Pilot: | 1.257”, 0.825” |
| Hub: | 1.500” SLOTS |
| Mounting: | 6 PADS M9 x 1.25 THREADS, 10-9/16" BOLT CIRCLE |
| Clutch: | YES |
| ID Code: | 50A110 |
| Weight: | 38 |
| FTC Part #: | 89-91 |
 | |
| Price: | $326.00 |
| Core Charge: | Does NOT Include refundable core charge of $80.00 |
| Make/Model: | 2005 - 2007 TOYOTA AVALON 4.0L |
| Transmission: | A750E/F |
| Diameter: | 11-7/8” DIAMETER, OVERALL HEIGHT 4.55" |
| Spline: | 32 SPLINE, 20 BLADES, 20 INTERNAL SPLINE, 38 SPLINE STATOR |
| Pilot: | 1.258” DIAMETER STEPPED TO 0.825", 1.440" LONG |
| Hub: | SLOTTED, 1.500" OD, 1.562" LONG |
| Mounting: | 6 SQUARE PADS 0.290" TALL, 9MM X 1.25 THREADS, 9-5/8" |
| Clutch: | YES |
| ID Code: | INK CODE: 5304, 53A040 METAL STAMP: 5A1 |
| Notes: | NO RING GEAR |
| Weight: | 38 |
| FTC Part #: | 94-6 |
 | |
| Price: | $286.00 |
| Core Charge: | Does NOT Include refundable core charge of $80.00 |
| Make/Model: | 2003 - 2005 TOYOTA 4RUNNER 4.0L 2007 - 2014 TOYOTA FJ CRUISER 4.0L |
| Transmission: | A750E/F |
| Diameter: | 11-3/4" |
| Spline: | 20 38 SPLINE STATOR |
| Pilot: | 1.257" STEPPED PILOT, 1-1/4" LONG, 0.825" |
| Hub: | FLANGED AND SLOTTED HUB Hub Diameter 1.500" 1.755" LONG |
| Mounting: | 6 PADS 0.65" THICK ON 10-1/2" BOLT CIRCLE 9 X 1.25 THREADS |
| Clutch: | YES |
| ID Code: | 53A040,50A110, 5A1 |
| Notes: | SLIGHTLY REDUCED PRIMARY Overall Height:5.360" |
| Weight: | 38 |
